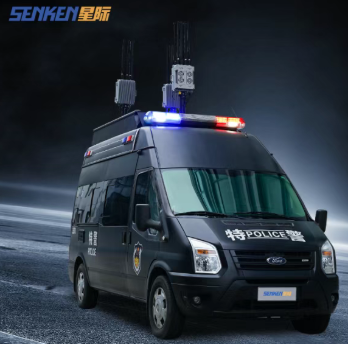

Full-band “invisible guardian” builds a solid wireless protection wall
Full-band jamming systems can block the reception and processing of normal commands by transmitting jamming signals that are consistent with the

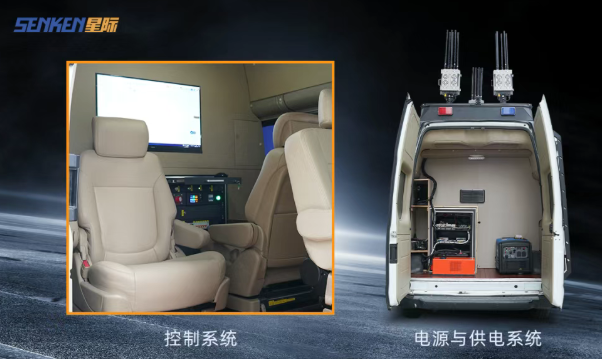

Hardware Introduction:It mainly consists of four core parts: transmitter, antenna system, control system, and power supply system.
1.Transmitter:
As the “source” of the jamming signal, it is responsible for generating and transmitting the jamming signal. Its power and frequency range directly determine the jamming effect and
coverage area.
2.Antenna System:
Acting as the “transmitter” of the signal, it achieves directional or omnidirectional coverage of the jamming signal.
3.Control System:
This is the “brain” of the device, precisely controlling the transmitter’s frequency, power, and other operating parameters, as well as enabling flexible frequency band selection and rapid switching.
4.Power Supply System:
Provides stable and continuous power support for the device. Especially for vehicle-mounted applications, the power supply system is designed to be space-saving and lightweight, producing no exhaust fumes or noise, and is highly adaptable.
Functional advantages
Wide range, multi-target interference. Specifically designed for modern mobile base station communications, its interference distance is calibrated based on strong anti-interference capabilities. It effectively blocks GSM/CDMA/DCS/WCDMA/LTE/WIFI (tri-band)/5G (including broadcast 5G) frequency bands, offering a wide interference range and broad coverage.
It supports separate settings to avoid “special frequencies for police enforcement,” preventing interference with the normal operation of “police communication systems.”
Full-band, customizable:The frequency range coverage can be customized within the full frequency band of 20MHz to 6GHz, and the interference digital source can be flexibly selected according to different application scenarios.
Long-range, all-around interference: Targeting mobile phones and wireless remote controls, the interference radius is ≥100 meters; targeting drones and unmanned remote control devices, the effective interference and countermeasure distance is ≥1000 meters (based on a 0.1W radiation source). The effective distance can be adjusted via software, and the interference time is ≤5 seconds, achieving 360° all-around, precise, and efficient interference.

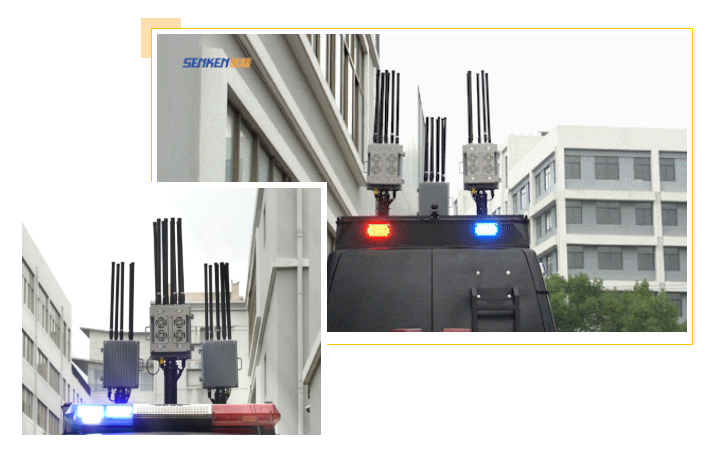

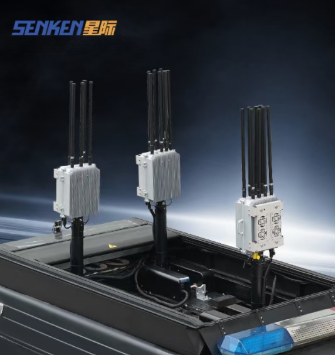

High integration, strong adaptability: The entire unit has a compact structure, mainly composed of the jamming host and antenna feeder. The integrated design ensures stable performance. It is also equipped with an intelligent temperature control and heat dissipation system, with four external high-power waterproof fans on each device, enabling stable operation for extended periods even in harsh environments.

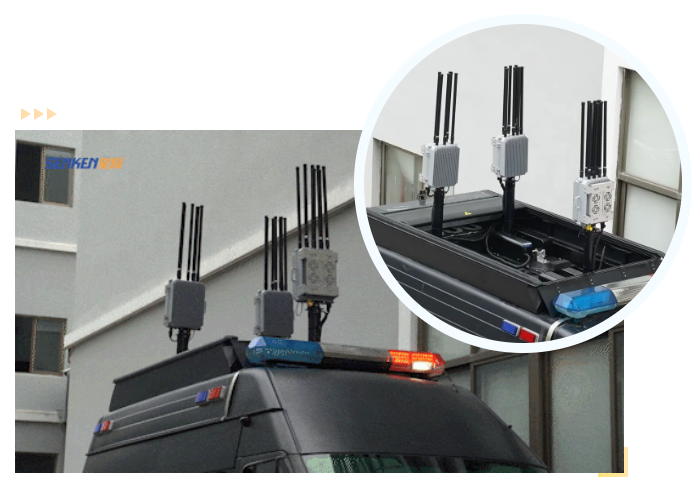

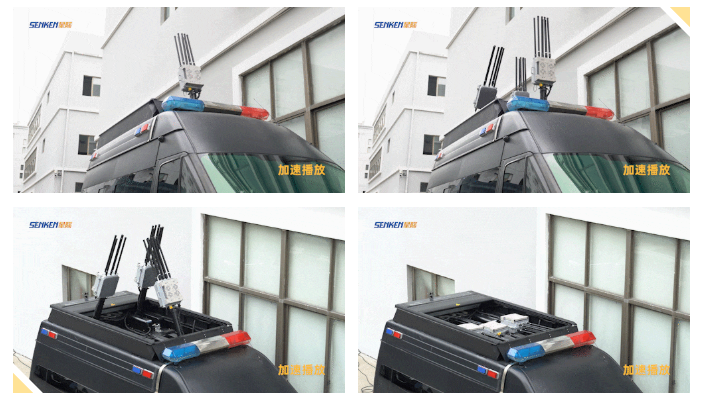

The antennas are height-adjustable and can be opened and closed. The antennas are designed to be tilted and can be raised and lowered remotely with a single button.
The roof cover supports remote one-button opening and closing, making it easy to operate and ensuring complete waterproofing while also facilitating the daily maintenance of the equipment.

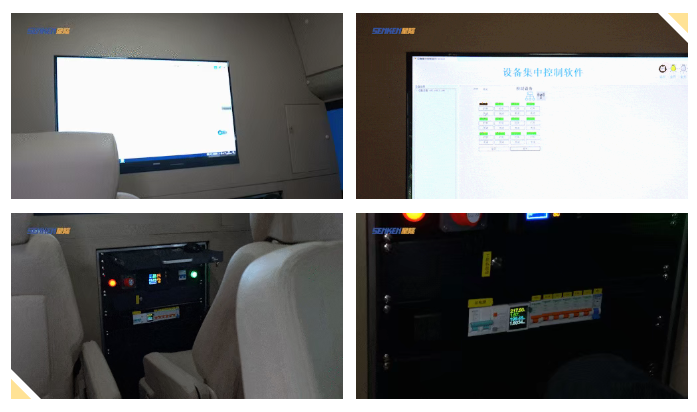

Integrated control, easy to operate
The in-vehicle integrated control system allows for individual operation of equipment according to actual usage. Operation is also very simple, with built-in centralized control software that allows all equipment to be turned on/off with a single button.
