Senken New 5G Body Worn Camera DSJ-H7
v Features
High Level Protection
-IP66, adaptive to various environments
-2 meters drop protection
Excellent Video Transmission
-5G / Wi-Fi transmission, improves the video stream continuity under unstable network conditions
-H.264 / H.265 video codec, saves up to 50% bandwidth and storage
High Quality Image
-Night view with LED and IR
-High definition and smooth picture, 4K@30fps
Recognition Functions
-Supports face recognition
-Built-in face comparison algorithm, offline alarm
Abundant Functions and Features
-2.8” IPS touchscreen display
-Various shortcut button, additional customized function button
-Supports location function by GPS, GLONASS
-Supports external memory
-Supports removable clips
Multimedia function:
-Support cluster PTT intercom
-Support functions such as video recording, QR code scanning, TTS, etc
-Support file upload to cloud servers and support breakpoint resume function
-Support AI algorithms such as facial recognition, license plate recognition, etc

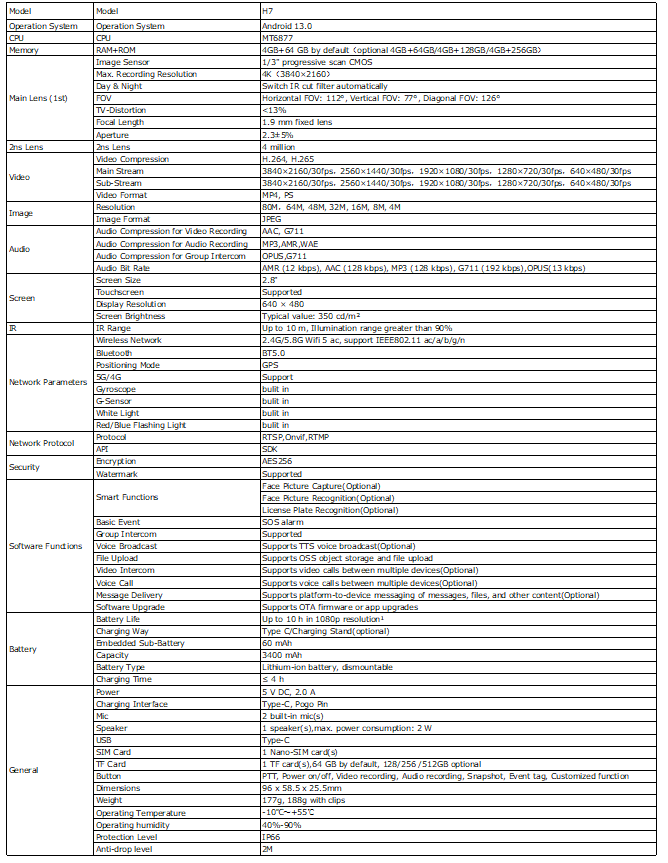

Specifications
|
Model |
Model |
H7 |
|
Operation System |
Operation System |
Android 13.0 |
|
CPU |
CPU |
MT6877 |
|
Memory |
RAM+ROM |
4GB+64 GB by default（optional 4GB+64GB/4GB+128GB/4GB+256GB） |
|
Main Lens (1st) |
Image Sensor |
1/3″ progressive scan CMOS |
|
Max. Recording Resolution |
4K（3840×2160） |
|
|
Day & Night |
Switch IR cut filter automatically |
|
|
FOV |
Horizontal FOV: 112°, Vertical FOV: 77°, Diagonal FOV: 126° |
|
|
TV-Distortion |
<13% |
|
|
Focal Length |
1.9 mm fixed lens |
|
|
Aperture |
2.3±5% |
|
|
2ns Lens |
2ns Lens |
4 million |
|
Video |
Video Compression |
H.264, H.265 |
|
Main Stream |
3840×2160/30fps，2560×1440/30fps，1920×1080/30fps，1280×720/30fps，640×480/30fps |
|
|
Sub-Stream |
3840×2160/30fps，2560×1440/30fps，1920×1080/30fps，1280×720/30fps，640×480/30fps |
|
|
Video Format |
MP4, PS |
|
|
Image |
Resolution |
80M，64M, 48M, 32M, 16M, 8M, 4M |
|
Image Format |
JPEG |
|
|
Audio |
Audio Compression for Video Recording |
AAC, G711 |
|
Audio Compression for Audio Recording |
MP3,AMR,WAE |
|
|
Audio Compression for Group Intercom |
OPUS,G711 |
|
|
Audio Bit Rate |
AMR (12 kbps), AAC (128 kbps), MP3 (128 kbps), G711 (192 kbps),OPUS(13 kbps) |
|
|
Screen |
Screen Size |
2.8″ |
|
Touchscreen |
Supported |
|
|
Display Resolution |
640 × 480 |
|
|
Screen Brightness |
Typical value: 350 cd/m² |
|
|
IR |
IR Range |
Up to 10 m, Illumination range greater than 90% |
|
Network Parameters |
Wireless Network |
2.4G/5.8G Wifi 5 ac, support IEEE802.11 ac/a/b/g/n |
|
Bluetooth |
BT5.0 |
|
|
Positioning Mode |
GPS |
|
|
5G/4G |
Support |
|
|
Gyroscope |
bulit in |
|
|
G-Sensor |
bulit in |
|
|
White Light |
bulit in |
|
|
Red/Blue Flashing Light |
bulit in |
|
|
Network Protocol |
Protocol |
RTSP,Onvif,RTMP |
|
API |
SDK |
|
|
Security |
Encryption |
AES256 |
|
Watermark |
Supported |
|
|
Software Functions |
Smart Functions |
Face Picture Capture(Optional) |
|
Face Picture Recognition(Optional) |
||
|
License Plate Recognition(Optional) |
||
|
Basic Event |
SOS alarm |
|
|
Group Intercom |
Supported |
|
|
Voice Broadcast |
Supports TTS voice broadcast(Optional) |
|
|
File Upload |
Supports OSS object storage and file upload |
|
|
Video Intercom |
Supports video calls between multiple devices(Optional) |
|
|
Voice Call |
Supports voice calls between multiple devices(Optional) |
|
|
Message Delivery |
Supports platform-to-device messaging of messages, files, and other content(Optional) |
|
|
Software Upgrade |
Supports OTA firmware or app upgrades |
|
|
Battery |
Battery Life |
Up to 10 h in 1080p resolution¹ |
|
Charging Way |
Type C/Charging Stand(optional) |
|
|
Embedded Sub-Battery |
60 mAh |
|
|
Capacity |
3400 mAh |
|
|
Battery Type |
Lithium-ion battery, dismountable |
|
|
Charging Time |
≤ 4 h |
|
|
General |
Power |
5 V DC, 2.0 A |
|
Charging Interface |
Type-C, Pogo Pin |
|
|
Mic |
2 built-in mic(s) |
|
|
Speaker |
1 speaker(s),max. power consumption: 2 W |
|
|
USB |
Type-C |
|
|
SIM Card |
1 Nano-SIM card(s) |
|
|
TF Card |
1 TF card(s),64 GB by default, 128/256 /512GB optional |
|
|
Button |
PTT, Power on/off, Video recording, Audio recording, Snapshot, Event tag, Customized function |
|
|
Dimensions |
96 x 58.5 x 25.5mm |
|
|
Weight |
177g, 188g with clips |
|
|
Operating Temperature |
-10℃～+55℃ |
|
|
Operating humidity |
40%-90% |
|
|
Protection Level |
IP66 |
|
|
Anti-drop level |
2M |
