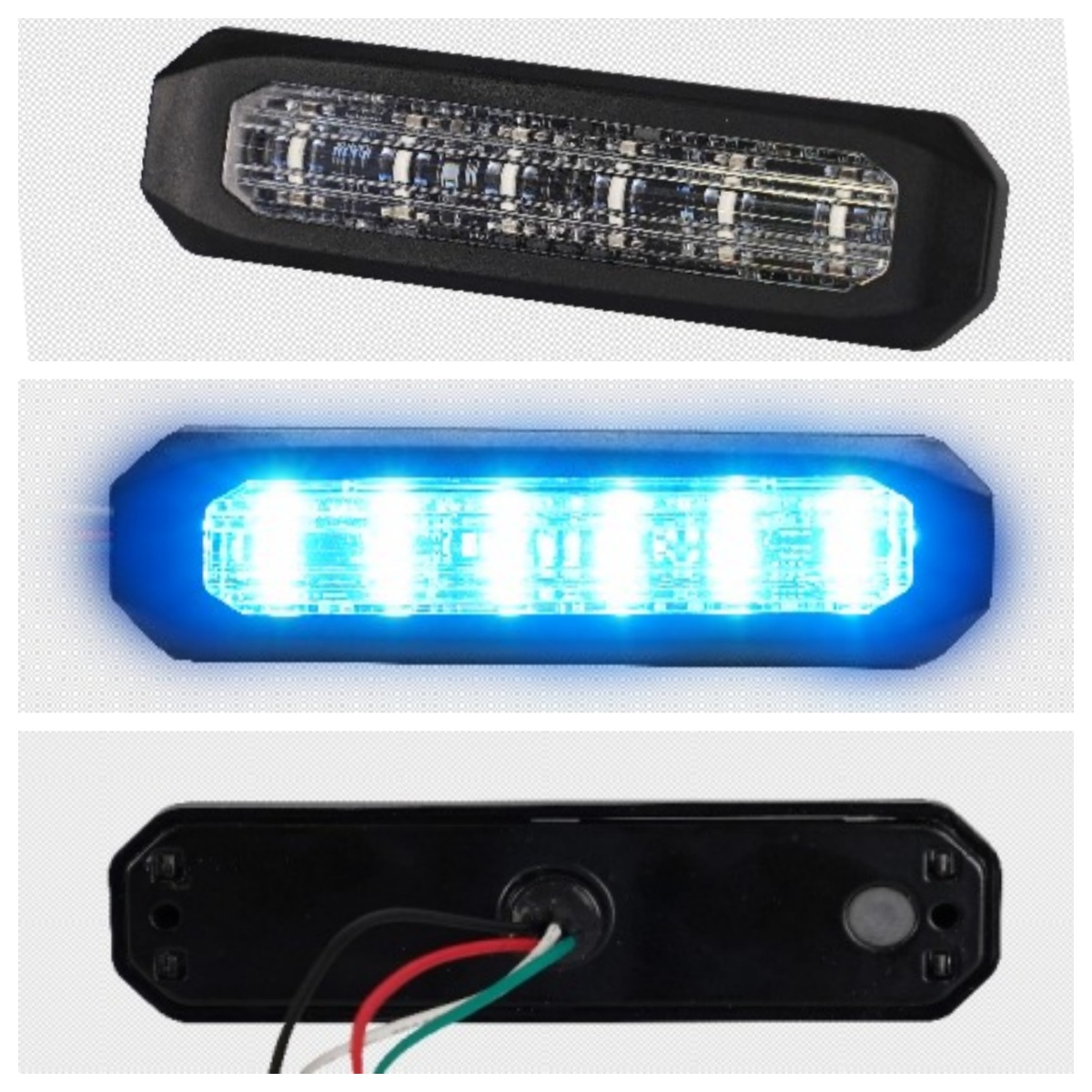

SENKEN NEW PRODUCT LAUNCHING:LTE2705 LIGHTHEAD
Features:
- Using high-power 5W high-efficiency LED, it has long service life and high brightness, and meets R65 class 2, R10 and other standards
- The installation screws are hidden in the appearance design, the whole lamp is ultra-thin, the light source structure is compact, and it is easy to install. It has 11 flash modes and comes with a cruise mode
- Multiple lamp bead color options of red, blue, yellow and white, supporting two-color and three-color with 32g weight
- The series of synchronization functions makes the whole vehicle better
- The lampshade is made of UV-resistant, yellowing-resistant polycarbonate (PC2807) material, which effectively resists ultraviolet radiation
- It has a number of EMC\EMI (electromagnetic transient immunity, electrostatic discharge immunity, etc.) protection properties and strong anti-interference ability
- The aluminum alloy high-performance heat dissipation base is used to delay light decay and extend the life of the warning light
- Sealed using automated gluing process, the protection level of the police light can reach IP67

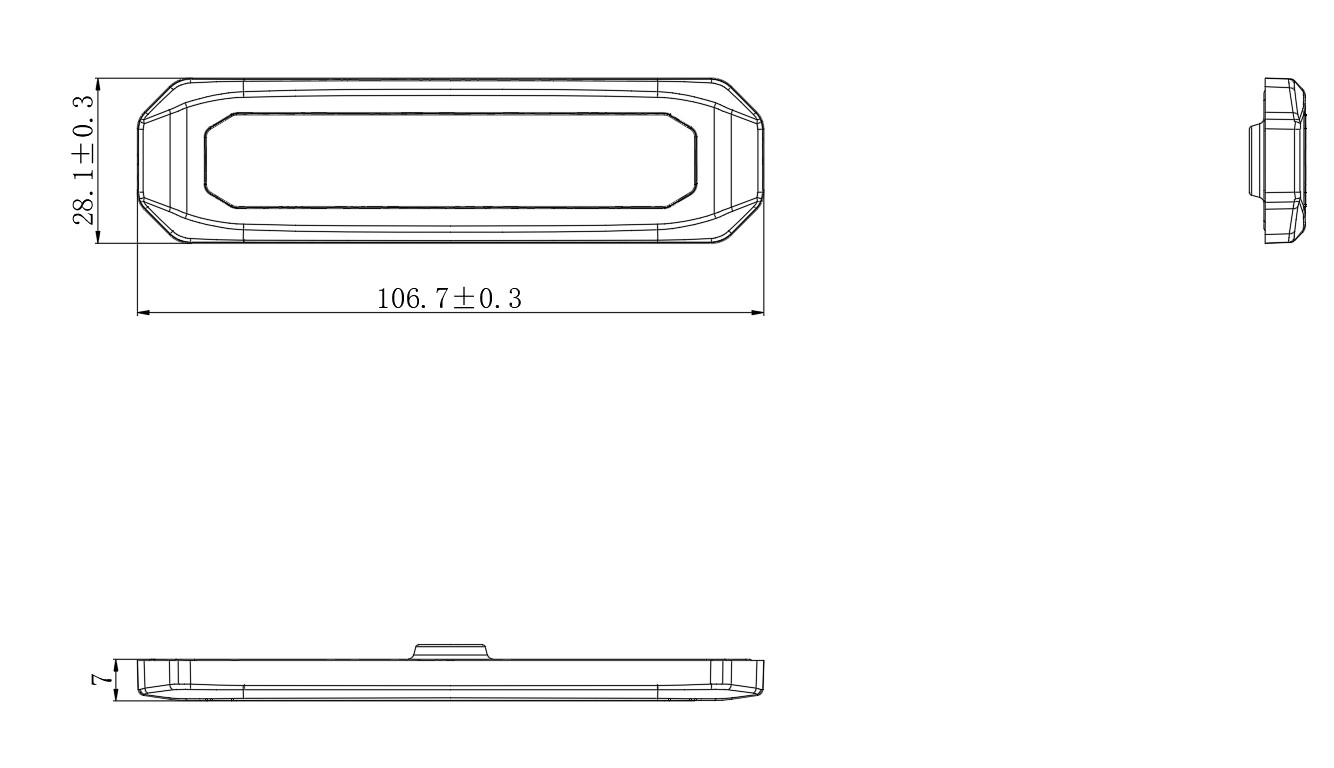

Product Drawing:
Technical Specifications:
Rated voltage: DC 10–30V
Rated power: ≤15W
Operating temperature: -40 to 75°C
Waterproof rating: IP67
Wiring Description:
White wire: Cruise (steady on)
Red wire: Positive (flashing)
Black wire: Negative
Green wire: Mode switching wire + synchronize

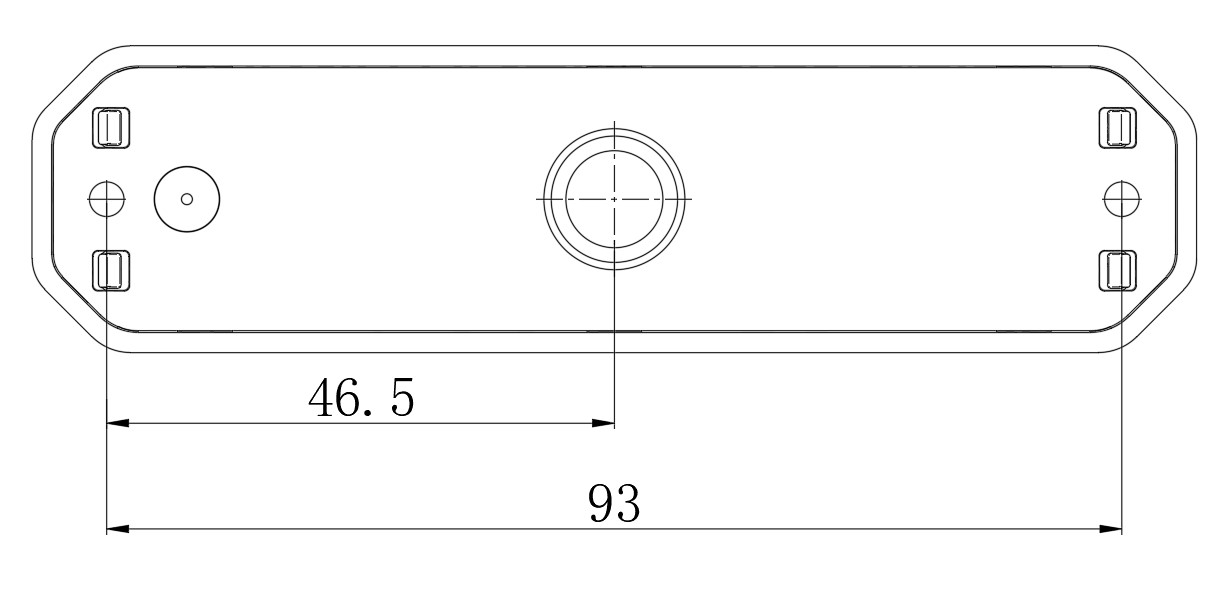

Installation dimensions:
Product packaging information:
Inner box：145×120×50mm 2pcs/inner box
Outside box：655×300×300mm 100pcs/outside box
