SENKEN New Product: TZ658 Portable Multifunctional Lighting Device
Scope of application:
It is mainly applicable to the lighting of individual soldiers in various firefighting and rescue operations in the fire protection industry, as well as in outdoor and wild lighting places for emergency rescue. At the same time, it is also suitable for personal lighting and signal indication in other industries such as fixed-point search and accident handling.
Performance features:

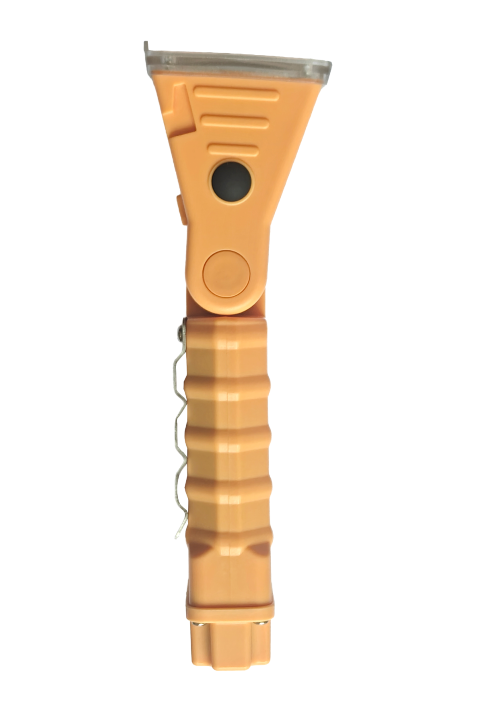

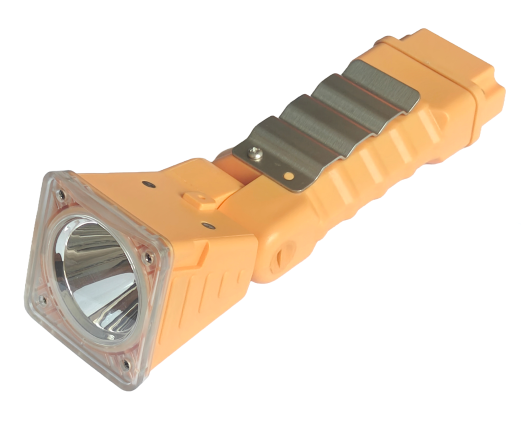

- It features three levels of adjustment: working light, strong light and strobe, meeting the requirements of lighting and signal indication. The lamp can be carried and used in various ways such as handheld and waist wear. The lamp head can be adjusted freely within a 90° range without any blind spots in lighting.

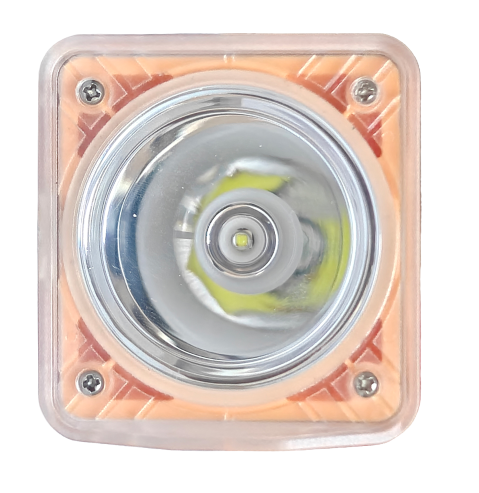

- The light source adopts high-brightness LED light from a well-known brand, which features low energy consumption, high luminous efficiency, soft light, no glare, and does not cause visual fatigue to the eyes of the workers, thereby enhancing work efficiency.
- High-energy non-memory lithium battery, featuring high energy density, large capacity, no pollution, economic and environmental protection, recyclability, excellent high and low temperature performance, strong charge protection ability, long service life, safety and reliability, health and safety, can be charged at any time. After a full charge, the storage capacity should not be less than 80% of the full capacity within 3 months of storage.
- The intelligent LED driver circuit makes the product safer and more reliable. The built-in battery protection board is equipped with overcharge, over discharge, overcurrent and short-circuit protection devices to ensure the safety of battery use.
- Unique design, reasonable structure, novel and beautiful shape, simple and convenient operation; It has a battery level display function. Shake the lamp, and the battery level display in the pane at the rear of the lamp will show the battery level.
- The excellent waterproof structure design enables normal operation in the rain and has strong penetration through water mist, making it suitable for all-weather use in rainy, foggy and cloudy days.
Parameters：
|
No. |
Parameters |
Unit |
Value |
|
|
1 |
Rated Voltage |
V |
3.7 |
|
|
2 |
Rated Capacity |
Ah |
4.4 |
|
|
3 |
LED Light source |
Power |
W |
3 |
|
Luminous flux |
lm |
390 |
||
|
Average service life |
h |
100000 |
||
|
4 |
Continuous illumination time |
Strong light |
h |
>10 |
|
Working light |
>15 |
|||
|
Strobe light |
>17 |
|||
|
5 |
Illuminance |
lx |
>5000 |
|
|
6 |
Charging time |
h |
8 |
|
|
7 |
Battery service life |
cycles |
1000 |
|
|
8 |
Dimension |
L |
mm |
180 |
|
W |
50 |
|||
|
H |
54 |
|||
|
9 |
Weight |
kg |
0.25 |
|
Usage method:
1.Press the switch on the lamp for the first time for the working light mode, press it for the second time for the strong light mode, and then press it to turn off.
2. If you want the stroboscopic function, hold down the switch for about 3 seconds when the lamp is in the strong or weak light mode to enter the stroboscopic working mode.
3. The lamp head of the work light can be adjusted and cut at any Angle of 90 degrees. You just need to pull the lamp head forcefully to achieve the desired illumination direction.

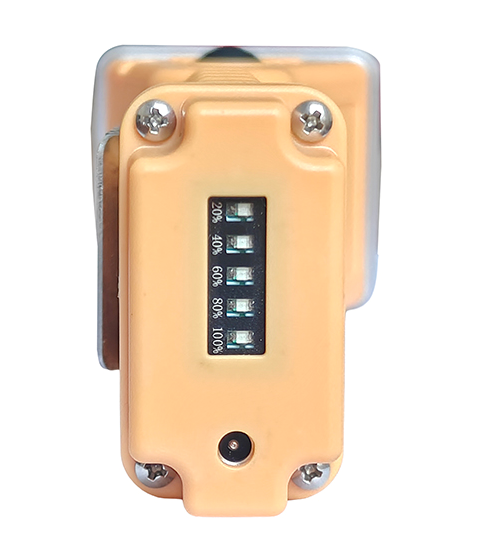

4. The rear of the work light is equipped with a battery level display function. When the lamp is shaken, the battery level display at the rear shows the battery level. There is a total of 5 leds indicating the battery level. When one LED is on, it indicates that 20% of the battery is available. When the lamp is fully charged, all 5 leds are on.
5. For the first use, please ensure that the battery is charged for more than 6 hours before use. If it is not going to be used for a long time, recharge it for 8 hours every three months for normal use.
6. Please charge with the dedicated charger provided. The charger is equipped with a built-in charging protection device. A red indicator light indicates charging, and when it changes to green, it means the light is fully charged.
