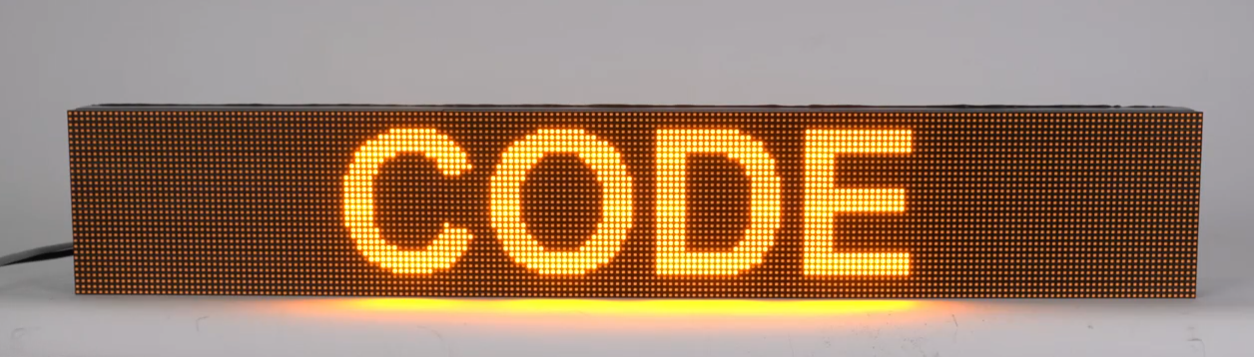

SENKEN new product: YXPC-DC 960*160 display
Function：
1: Traffic slogans and graphic patterns can be displayed via the controller.
2: Designed for DC operation, the display features low power consumption; the rated power consumption is less than 50W.
3: The controller allows for easy modification of the displayed content, ensuring user-friendly operation.
4: Intuitive and Convenient Control: The controller features an LCD screen where the text displayed corresponds exactly—one-to-one—with the text shown on the main display screen, offering an intuitive and convenient user experience.
5: Long Lifespan and Vibration Resistance: With a service life exceeding 50,000 hours, the unit is capable of withstanding the demands of continuous operation, even in environments subject to vibration.
6: Large Storage Capacity and Multiple Display Modes: The display screen can store up to 99 separate messages. Furthermore, depending on the selected display mode, messages can be presented in various formats, including scrolling text, page-flipping, and fixed displays of 2, 4, 8, or multiple characters.
Technical Specifications:
| Name | YXPC-DC-960×160 display |
| 1、Pixel Tube | Pixel Pitch: 5mm × 5mm
Emitting Point Color: Amber |
| 2、Module Board | Module Dimensions: 320 mm × 160 mm;
Module Pixel Matrix: 64 dots (W) × 32 dots (H); |
| 3、Display Devices | Physical Resolution: (Width) 192 dots × (Height) 64 dots = 12,288 dots;
Screen Dimensions: 960 mm × 160 mm × 50 mm (Tolerance: ±3 mm); Screen Weight: < 15 kg; Viewing Distance: ≥ 150 m; Viewing Angle: Horizontal ±60°, Vertical ±45°; Ambient Temperature: -20°C to +55°C; Relative Humidity: ≤ 95%; IP Rating: IP65; |
| 4、powered by | Operating Voltage: DC 12V ±10%
Max. Power Consumption: < 50W |
| 5、Control Method | Control Modes: Controller Control, RS485 Protocol Control |
| 6、Main Technical Parameters | 1) Driving Method: Utilizes dedicated LED driver components.
2) Service Life: ≥ 100,000 hours. 3) Mean Time Between Failures (MTBF): ≥ 50,000 hours. 4) Brightness: ≥ 2500 cd/m². |
