SENKEN New SGD Series 8000mm Dual-Operation Electric Telescoping Mast for All-Weather Safety & Surveillance
SENKEN has launched its all-new SGD Series electric telescopic mast fitted with a screw and cable drive system, which overcomes the temperature and environmental constraints that plague pneumatic lifting masts. Designed to operate reliably in all weather conditions.
1. Dual Electric & Manual Operation

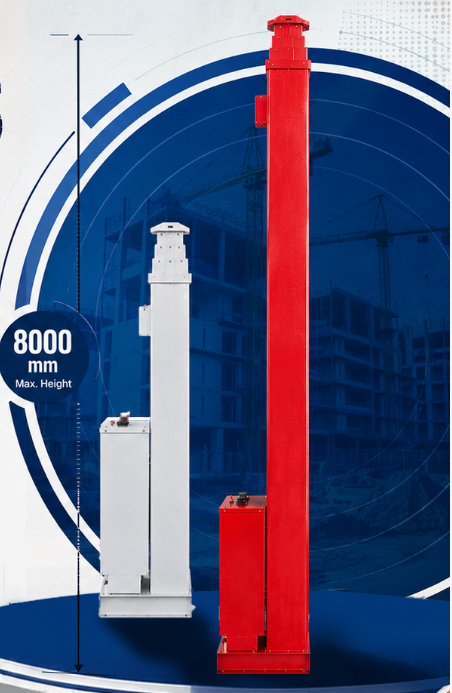

Designed to avoid power-outage downtime common with pneumatic masts, the mast features standard electric lifting plus a manual crank backup. Its 5-section structure hits a standard 8m height, with custom lengths from 2m to 15m available for diverse field scenarios.
2. Reliable Screw-and-Cable Drive System
The innovative screw-and-cable drive eliminates leakage and frequent failures of pneumatic models. Built-in positive locking holds the mast stable at any height to securely mount cameras, antennas and emergency lights.
3. All-Weather Wind-Resistant Build
Crafted from anodized 6063 aluminum alloy, the mast withstands Grade 10 winds. It operates from -20°C to +55°C, with an optional -40°C cold-resistant version for extreme cold regions. Perfect for border patrol, disaster rescue and roadside monitoring.
Core Technical Specifications
Operating Voltage: AC220V
Motor Power: 370W
Collapsed Height: 2100±10mm
Max Extended Height: 8000±100mm
Max Payload: ≤50kg
Total Weight: ≤85kg
Stowed Size: 2241×2773mm
Control: 2.5m wired controller + manual crank
Customization: RAL colors, adjustable heights, low-temperature variant
