YXPC-DC-960X480 DISPLAY

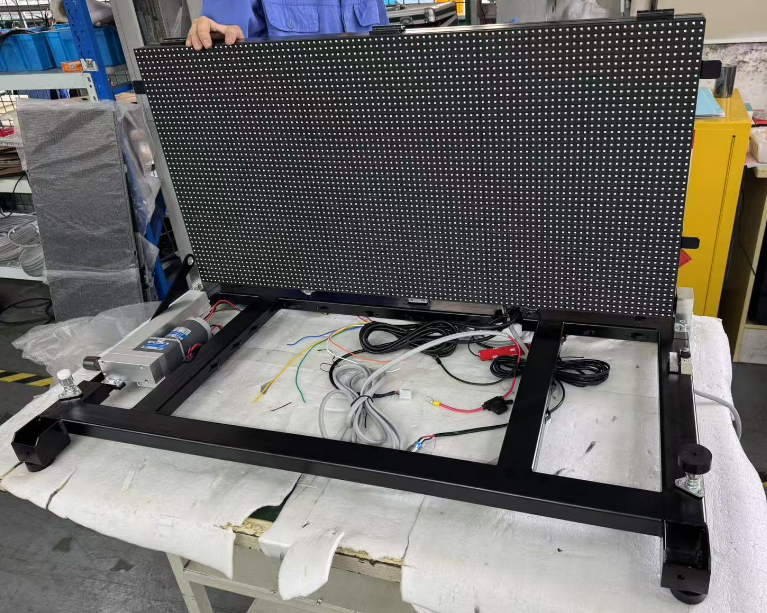

The YXPC-DC-960X480 vehicle-mounted command display system is used as a text and graphic warning system for traffic diversion in mobile occasions such as traffic police duty and engineering rescue. The system consists of two parts: the display screen and the display base.

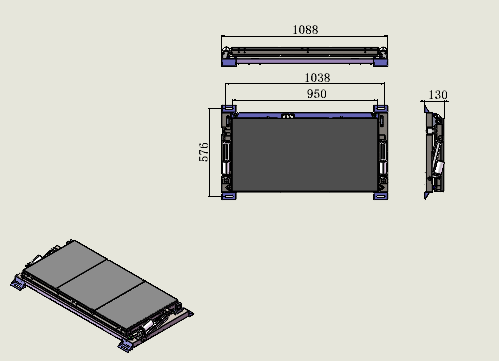

Dimensions
Technical Parameters
| 1、pixel tube | Pixel pitch: 10mm
Display color: Red Physical density: 10,000 dots/m² |
| 2、Unit board | Unit board dimensions: 320mm x 160mm
Module rows and columns: 32 points in length x 16 points in height |
| 3、Full screen display | Display Area: 0.96m (Length) × 0.48m (Height) = 0.4608m²
Physical Resolution: 96 dots (Length) × 48 dots (Height) = 4608 dots Display Dimensions: 960mm x 480mm x 64mm, ±3mm tolerance Screen Weight: Less than 35kg Viewable Distance: 10-150m Optimal Viewing Angle: Horizontal ±60°, Vertical ±45° Ambient Temperature: -40°C to +55°C Relative Humidity: ≤95% |
| 3、powered by | Operating voltage: DC12V±10%
Maximum power consumption: ≤200W |
| 4、Control method | Control method: RS485 control, mobile phone APP control via WIFI |
| 5、Protection level | The system is fully waterproof (IP65) and vibration-resistant |
| 6、Material | Q235 steel |

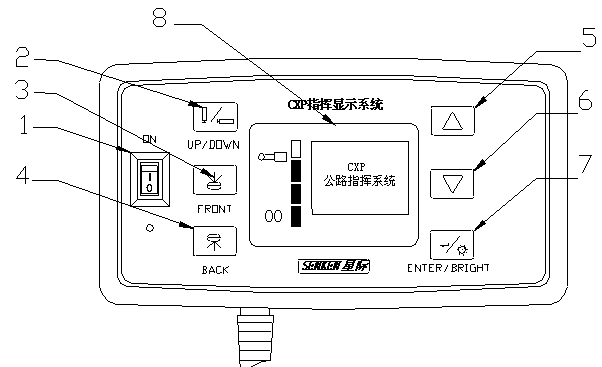

Controller technical parameters
1. Power switch
2. Volume up/down control button
3. Front warning light control button
4. Rear warning light control button/Brightness control button
5. Page down button
6. Page up button
7. Confirm and send control button
8. Text display area
PACKING LIST:
Display*1
Controller*1
User manual*1
PACKING SIZE: 1240*800*230MM
GROSS WEIGHT: Around 80kg
