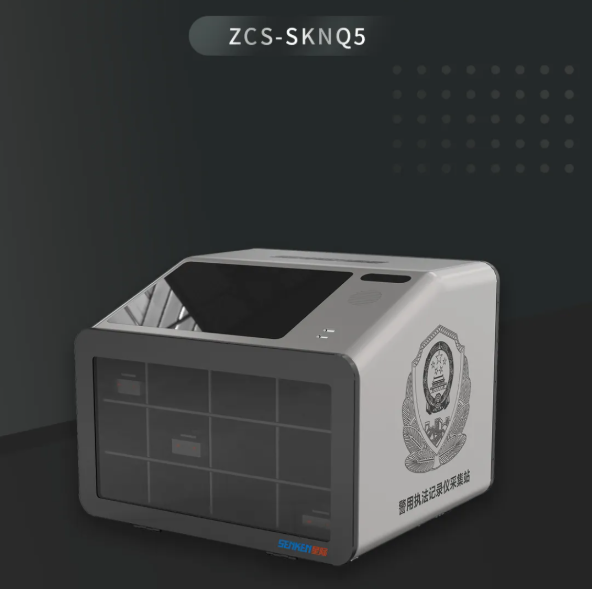

SENKEN New Product: Desktop Docking Station ZCS-SKNQ5 Data Collection & Efficient Management
Body Worn Camera Access & Registration
File Format Conversion
Abnormal Alarm
Assessment Warning Function
Priority Collection
System Information Association Marking
File Information Editing
H.265 Video Playback
Automatic Upload
Information & Status Display
One-to-One Correspondence
Data Retrieval
Applicable Scenarios
Traffic Police Departments Highway Administration Departments
Public Security Bureaus Urban Law Enforcement Bureaus
Product Specifications
- Mainboard: Industrial Control Mainboard
- CPU: Supports Intel Core i3 / i5 / i7 Processors
- Memory: 4GB DDR3, expandable up to 16GB
- System Disk: Solid State Drive (SSD)
- Display Screen: 11-inch Capacitive Touch Screen, resolution ≥1280×1024
- Access Capacity: 12 ports simultaneously via independent USB3.0 HUB; supports data collection & charging for 12 body worn cameras at once
- Fan: Ultra-quiet fan for low noise operation
- UPS: Reserved UPS slot for optional power failure protection system
- Camera: Built-in camera module with face recognition
- Extra Interfaces: 2 additional standard USB ports for external keyboard, mouse and other peripherals
- Storage: Supports 2 hard drives with RAID 5 backup
- Operating Noise: 44dB(A)
12 Simultaneous Device Access Ports
Expanded USB interfaces via USB3.0 HUB, delivering fast transmission speed and stable data transfer.
High-performance Surveillance-Grade Hard Drive
Guarantees secure data storage to prevent leakage and loss.
Average single-channel upload speed exceeds 3.4MB/s for high-efficiency data transmission.
Automatic Collection, Upload & Device Clearance
Intelligent automatic data processing to reduce manual workload.
Priority Collection Function
Dedicated priority upload ports for high-speed emergency data collection.
The system resumes collection for all other ports after priority tasks finish.
Wide Compatibility
Built-in format conversion module compatible with all mainstream body worn cameras on the market.
Automatically converts heterogeneous video formats to MP4 for seamless playback.
11-inch Capacitive Touch Screen
11-inch built-in capacitive touch screen with resolution above 1280×1024, intuitive and easy to operate.
Intelligent Face Recognition
Embedded face recognition function enhances system security and accelerates police workflow by simplifying operating procedures.
Intelligent Law Enforcement Data Management
The docking station automatically correlates data with body worn cameras, synchronizes police officer information and builds a facial recognition database for later file administration.
Collected data can be intelligently filtered and sorted by police ID, timestamp and other criteria to realize automated smart data management.
Low Noise & Eco-friendly Design
Ultra-quiet dual fan design with operating noise only 44dB(A), equivalent to soft whispers, free of operational interference.
Humanized Interface Design
Two extra dedicated USB ports for connecting external keyboards, mice and other peripherals, perfectly matching daily operation habits for better user experience.
