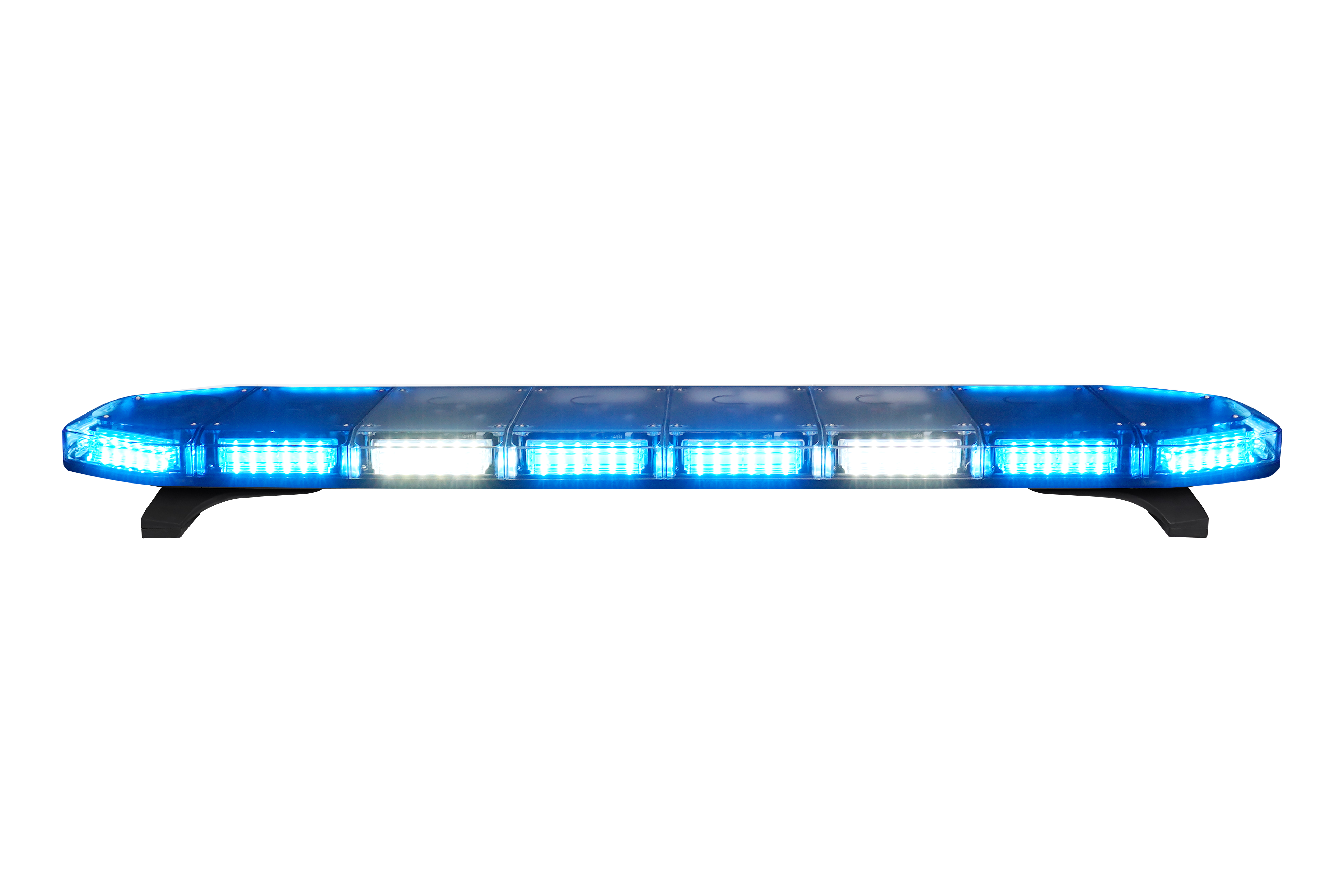

SENKEN New Product TBDA3 Series: Ultra-Slim Spiral LED Warning Lightbar
Superior Aerodynamics | High-Intensity Illumination | Modular Reliability
SENKEN, a leader in China high-performance vehicle safety equipment, today announced the launch of the TBDA3 Series Ultra-Slim double-layer LED Warning Lightbar. Engineered from the ground up for emergency responders, law enforcement, and off-road professionals, the TBDA3 Series redefines expectations for warning efficiency, vehicle integration, and long-term durability.
“We designed the TBDA3 Series to solve a persistent challenge in the emergency vehicle market: how to deliver maximum warning power without turning the vehicle into a noisy, drag-heavy liability.”
Technical Specifications
| Light Source | 108pcs * 5W High-Intensity LEDs |
| Operating Voltage | 10V – 30V DC |
| Flash Frequency | 1 – 3 Hz |
| Operating Temperature | -40C to +75C |
| Lens Material | High-impact Polycarbonate (PC) |
| Protection Rating | IP65 (Overall) / IP67 (Lighthead) |
| Standard Dimensions | 1200mm(L) x 280mm(W) x 94mm(H) |
| Configuration | 8 Front Modules + 8 Rear Modules + 2 Alley Lights |

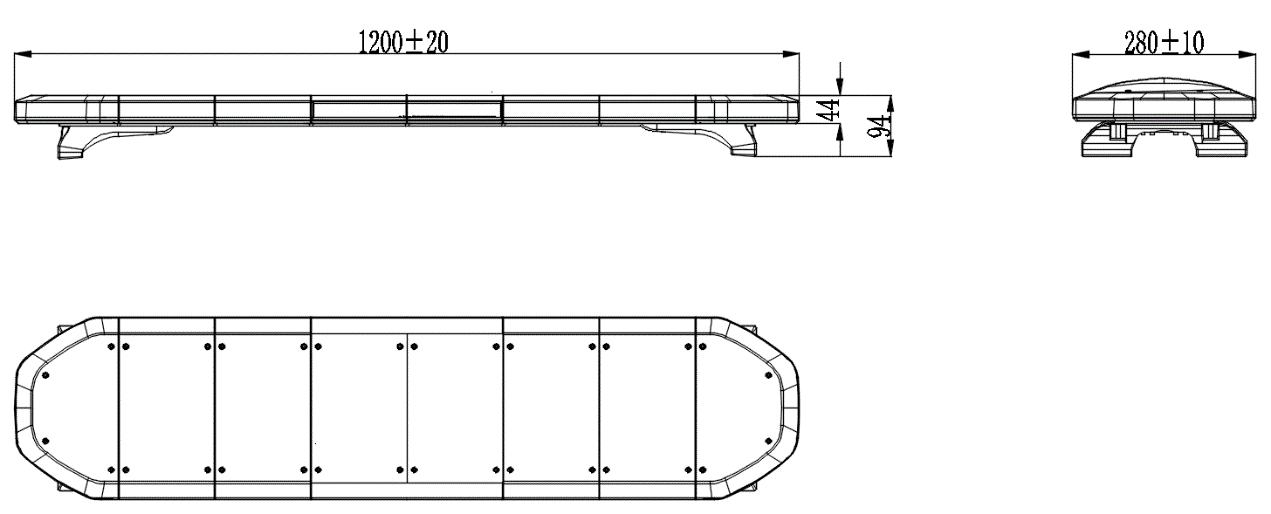

Dimensional Figure
