Vehicle Mounted LED Folding And Telescopic High Mast Tower Lights CFV182150
Vehicle Mounted LED Folding And Telescopic High Mast Tower Lights CFV182150
Our products line：
Base-hinged masts
– Mid range base-hinged 10m to 20m
– Grand range base-hinged 20m to 50m
Fixed masts
– Club range 15m to 30m
– Area range 20m to 50m
– Stadium range 30m to 70m
Lowering headframe masts
– 15m to 50m
Telescopic masts
– Club range to 20m
– Stadium range to 50mWind turbine masts
– Base-hinged range to 25m
– Fixed mast structures
Telecommunication mast structures
– Monopole structures to 60m

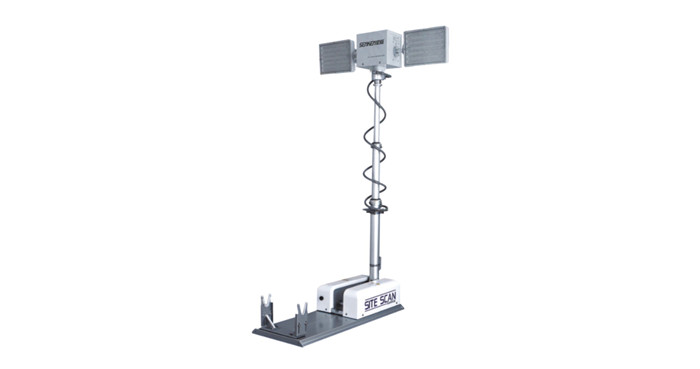

This Site scan is our new designed LED telescopic high mast telescopic lighting equipment, suitable for installation on the roof of small & medium size vehicles like some special vehicles, such as Fire trucks, Communication command vehicle, Emergency rescue Vehicle…
1. The equipment lighting power can be supplied from the vehicle battery2. With the function of up, down, rise and drop, the equipment can lift from the roof level position to be the position of 90 degree and expend to be 1.8m.3. The vertical lifting power source is provided by the air pump which Senken has the patent4. This equipment lighting tower can be mounted with other lamps of metal halogen, & LED.5. This new LED lamps can be also mounted on 1.2m, 2.5m, 3.5m, 4.7m mast.6. A camera and antenna equipment could be assembled according to customers requirement to increase the safety and improve the performance.
|
Part number |
Working voltage(V) |
Height(Meter) |
Light source |
Horizontal rotary angle |
Verticalrotary angle |
Luminous(Lm) |
Lamp power |
Net Weight(kg) |
|
CFV122150 |
DC12/24 |
1.2m |
LED |
380° |
330° |
2 x 11400 |
2 x 150W |
40 |
|
CFV182150 |
1.8m |
2 x 11400 |
2 x 150W |
50 |
||||
|
CFV184150 |
1.8m |
4 x 11400 |
4 x 150W |
54 |
||||
|
CFV252150 |
2.5m |
2 x 11400 |
2 x 150W |
55 |
||||
|
CFV254150 |
2.5m |
4 x 11400 |
4 x 150W |
50 |
||||
|
CFV352150 |
3.5m |
2 x 11400 |
2 x 150W |
60 |
||||
|
CFV354150 |
3.5m |
4 x 11400 |
4 x 150W |
64 |
