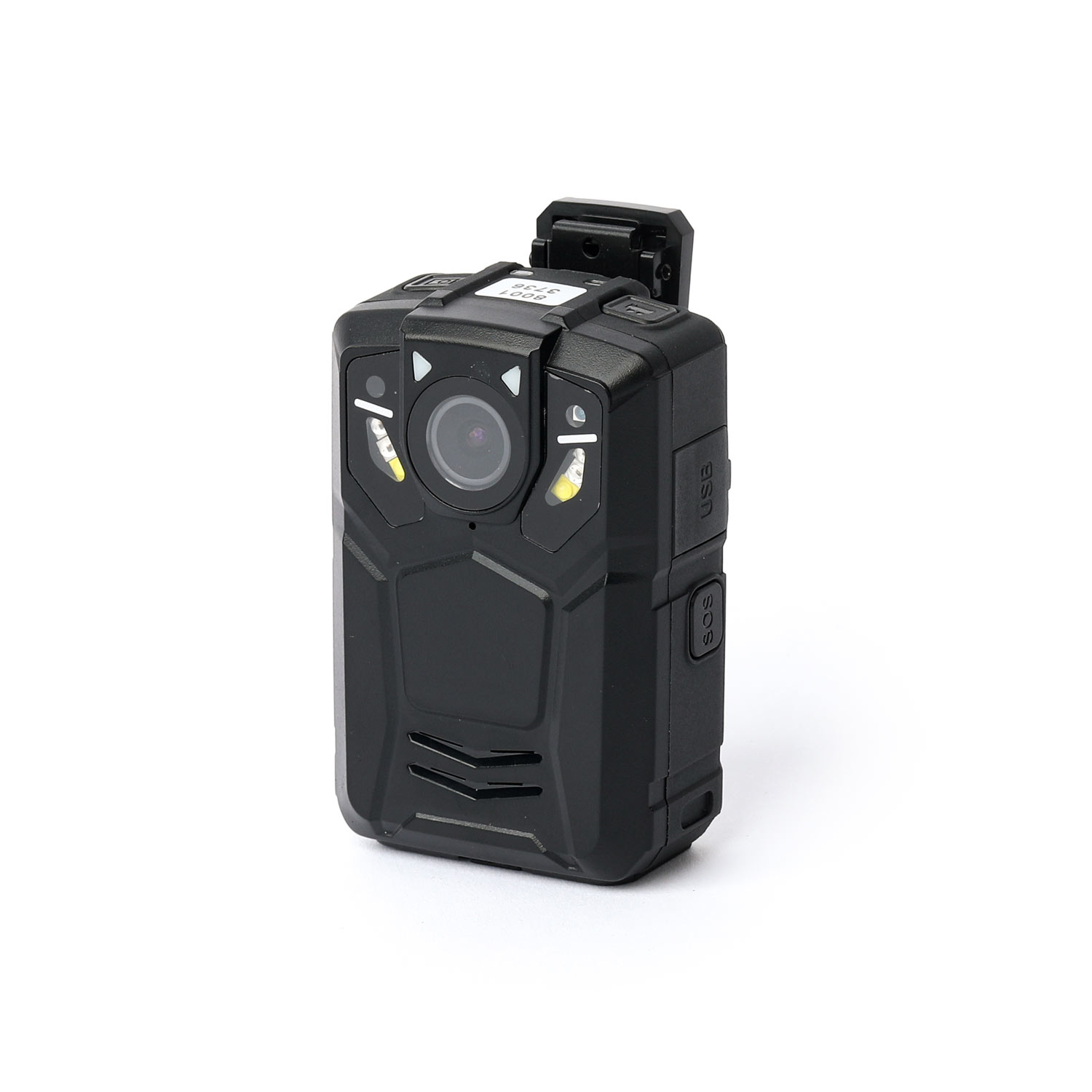

​DSJ-X7 Body Camera With WIFI GPS 4G Backup Battery

DSJ-X7 4G body camera with video, audio and recording function. As one of the high-tech field of law enforcement audio and video recording equipment.


Meeting the industry A-level standards, strict shape design, professional structural design. It is using the industry’s most advanced two-color injection molding process, the plastic molding surface after the full silicone injection, greatly enhance the anti- Drop water resistance.

With a separate turn on, video, camera and recording button; professional waterproof design, can be used in a variety of harsh environments.

OS Linux 3.10.73

Booting time

< 12 s
Language English
Video Video input 1x digital Camera for 1080p/720p/360p recording,available for external camera
Video output 2 inch LCD screen
RecordingResolution 1920×1080/1280×720/640×360
Frame rate 30 fps@1080p
Record mode Record audio and video at the same time
Compression H.264 (High profile up to level 4.1)
Audio Audio input 1x MIC input, support intercom connection with USB

Video Process

Live video resolution 1920×1080/1280×720/640×360
Photograph 1920×1080 ~ 8640×4752
Snap Support snapping during recording(the photo resolution base in recording) resolution)
Storage Built in 16GB TF card(available for 16~128GB)
Source IR Up to 10 Meters with Visible shape image at night
Lens lens’ angle >125°
Alarm Alarm input Support alarm input and the alarm can be show in platform
Interface USB 1x USB,for charging, communication with PC, upgrade OS, connect external camera etc


Protocol TCP/IP
3G/4G Optional,built in 3G/4G module (HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA/FDD-LTE/TDD-LTE)
wifi Optional,support WIFI connection and AP
GPS GPS Optional module for BDS/GPS/GLONASS,to record location and speed


Time synchronize with GPS, internet, PC
Dual bit stream Two different bit stream for recording and live streaming via 4G/3G
Default Can set to default setting
Indicator Power、Record、Snap、Audio record
Battery capacity 2600mAh x 2 Replaceable battery, keep NON-4G device running for about 8h,keep 4G device running for about 6h;Charging time is about 4h
Backup battery 60mA(Optional, keep device running during switch battery)



Wight About 165g
